SPEAKERS

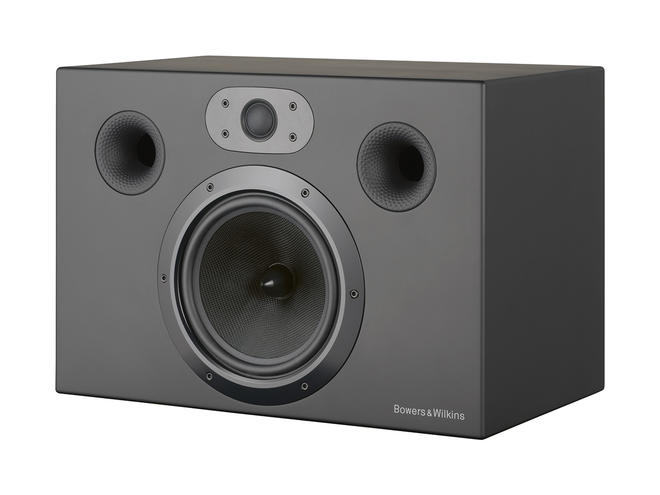

CT7.5 LCRS

IN-WALL SPEAKER

PRICE 769CHF / pcs incl.tax (7,7%) and shipment

Picture gallery

Experience home cinema as it was meant to be heard with B&W’s Custom Theatre 700 Series. Our new range of dedicated custom theatre loudspeakers brings B&W 700 Series technology and craftsmanship to your home cinema set-up at a cost-effective mid-range price.

The three models in the range integrate seamlessly with home theatre cabinetry and can each be positioned as left, centre, right or surround speakers. Each speaker uses high sensitivity Nautilus™ tube-loaded tweeters designed specifically for the reproduction of movie soundtracks along with first-order tweeter crossover filters for minimal signal degradation. Combined with our unique Aramid Fibre drive units, the result is extraordinarily life-like, dynamic movie sound quality.

The entry-level speaker in the range, the CT7.5 LCRS delivers outstanding spaciousness, imaging and definition through its single 7 inch Aramid Fibre CT700 Series bass/midrange drive unit.

- Description: Nautilus™ tube-loaded tweeter, Aramid Fibre bass/midrange cone Flowport™, Magnetically attached grille, 2-way vented-box system
- Drive units: 1x ø 25 mm (1") cloth dome high-frequency, 1x ø 180 mm (7") woven Kevlar® cone bass/midrange
- Frequency range: -6 dB at 48 Hz and 28 kHz
- Frequency response: 55 Hz - 22 kHz ±3 dB on reference axis
- Dispersion: Within 2 dB of reference response, Horizontal: over 60° arc, Vertical: over 10° arc
- Sensitivity (2.83 V, 1 m): 92 db spl
- Harmonic distortion: 2nd and 3rd harmonics (90 dB, 1 m), <1% 100 Hz - 20 kHz, <1% 50 Hz - 20 kHz
- Nominal impedance: 8 Ω (minimum 4.6 Ω)
- Crossover frequency: 4 kHz
- Recommended amplifier power: 50 W - 120 W into 8 Ω on unclipped programme
- Max. recommended cable impedance: 0.1 Ω

Avaliability

CT7.5 LCRS

On Request

Size & Weight

NET WEIGHT

11.60 kg

PRODUCT SIZE (WxHxD)

444 x 305 x 265 mm
