SPEAKERS

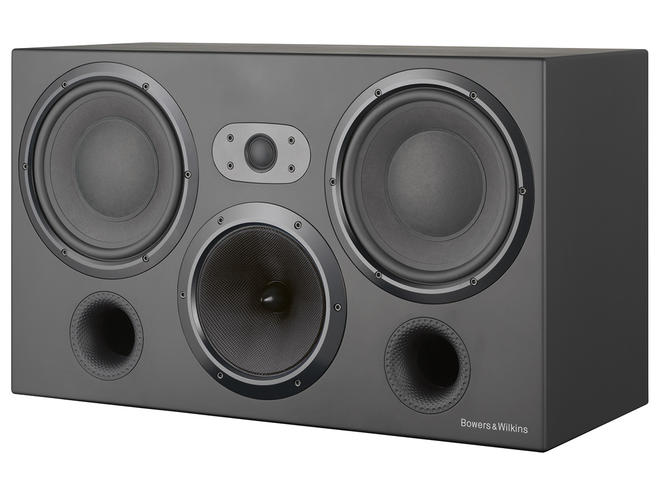

CT7.3 LCRS

IN-WALL SPEAKER

PRICE 1 919CHF / pcs incl.tax (7,7%) and shipment

Picture gallery

Experience home cinema as it was meant to be heard with B&W’s Custom Theatre 700 Series. Our new range of dedicated custom theatre loudspeakers brings B&W 700 Series technology and craftsmanship to your home cinema set-up at a cost-effective mid-range price.

The three models in the range integrate seamlessly with home theatre cabinetry and can each be positioned as left, centre, right or surround speakers. Each speaker uses high sensitivity Nautilus™ tube-loaded tweeters designed specifically for the reproduction of movie soundtracks along with first-order tweeter crossover filters for minimal signal degradation. Combined with our unique Aramid Fibre drive units, the result is extraordinarily life-like, dynamic movie sound quality.

The top-of-the-range CT7.3 LCRS has a pair of 8 inch bass drive units along with a dedicated Aramid Fibre FST™ midrange for unparalleled intelligibility, clarity and definition.

- Description: Nautilus™ tube-loaded tweeter, Aramid Fibre cone FST™ midrange Paper/Aramid, Fibre cone bass driver, Flowport™, Magnetically attached grille, 3-way vented-box system
- Drive units: 1x ø 25 mm (1") cloth dome high-frequency, 1x ø 150 mm (6") woven Aramid Fibre FST™ mid-range, 2x ø 200 mm (8") Paper/Aramid Fibre bass units
- Frequency range: -6 dB at 36 Hz and 28 kHz
- Frequency response: 42 Hz - 22 kHz ±3 dB on reference axis
- Dispersion: Within 2 dB of reference response, Horizontal: over 60° arc, Vertical: over 10° arc
- Sensitivity (2.83 V, 1 m): 92 db spl
- Harmonic distortion: 2nd and 3rd harmonics (90 dB, 1 m), <1% 50 Hz - 20 kHz, <1% 50 Hz - 20 kHz
- Nominal impedance: 8 Ω (minimum 3 Ω)
- Crossover frequency: 350 Hz, 4 kHz
- Recommended amplifier power: 50 W - 200 W into 8 Ω on unclipped programme
- Max. recommended cable impedance: 0.1 Ω

Avaliability

CT7.3 LCRS

On Request

Size & Weight

NET WEIGHT

21.50 kg

PRODUCT SIZE (WxHxD)

606 x 360 x 265 mm
