SPEAKERS

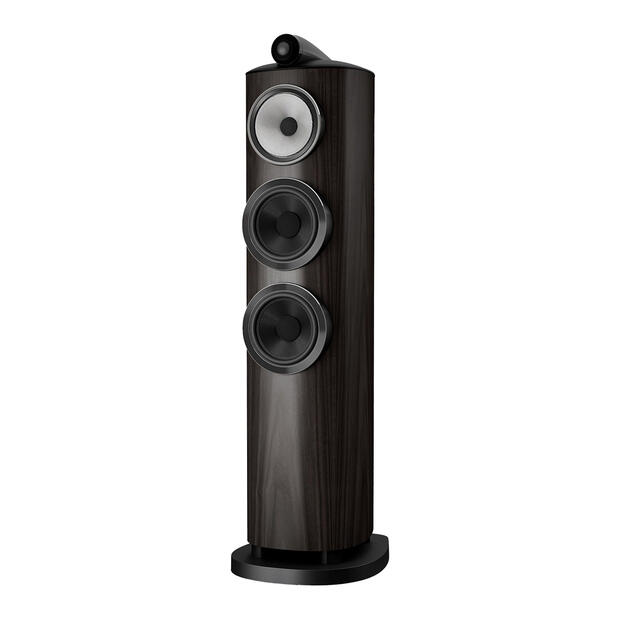

804 D5

DARK WALNUT

DARK WALNUT STEALTH BLACK WARM WHITE LIGHT WALNUT

FLOORSTANDING SPEAKER

PRICE 7 749CHF / pcs incl.tax (7,7%) and shipment, min 2 pcs

Picture gallery

The 804 D5 brings reference-quality 800 Series Diamond performance to a more conventional floorstanding loudspeaker design.

Perfect for those who want a breathtaking listening experience in a smaller footprint, the 804 D5 features our Diamond dome tweeter, housed in the iconic Tweeter-on-Top, for astonishing high-frequency precision. This is complemented by our Continuum cone, located within an all-new Aluminium midrange enclosure, plus two Aerofoil bass drive units, rigidly mounted within the reverse-wrap cabinet. Stabilised on an upgraded plinth with tuned-mass damping, 804 D5 reproduces clarity with breathtaking accuracy. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 804 D5 looks and sounds incredible.

- Technical features: Diamond dome tweeter, Solid body Tweeter-on-Top, Continuum™ cone FST midrange, Anti-Resonance plug, Biomimetic Suspension, Matrix™, Aerofoil™ base cones, Flowport™
- Description: 3-way vented-box system
- Drive units: 1x ø25 mm (1") Diamond dome high-frequency, 1x ø130 mm (5") Continuum cone FST midrange, 2x ø165 mm (6.5") Aerofoil™ bass
- Frequency range (-6 dB): 20 Hz – 35 kHz
- Frequency response (±3 dB): 19 Hz – 24 kHz
- Sensitivity: 89 dB
- Harmonic distortion: 2nd and 3rd harmonics (90 dB, 1 m on axis): < 1% 90 Hz – 20 kHz; < 0.3% 120 Hz – 8 kHz
- Nominal impedance: 8 Ω (minimum 3 Ω)
- Recommended amplifier power: 50 W – 200 W into 8 Ω on unclipped programme
- Max recommended cable impedance: 0.1 Ω
- Cabinet finishes: Stealth Black, Warm White, Dark Walnut, Light Walnut
- Grille finishes: Black (Stealth Black and Dark Walnut), Grey (Warm White and Light Walnut)
