SPEAKERS

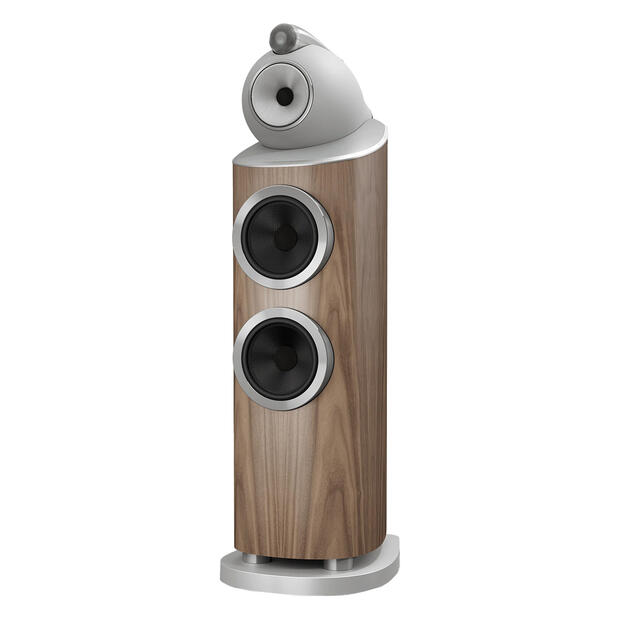

803 D5

LIGHT WALNUT

LIGHT WALNUT DARK WALNUT STEALTH BLACK WARM WHITE

FLOORSTANDING SPEAKER

PRICE 12 999CHF / pcs incl.tax (7,7%) and shipment, min 2 pcs

Picture gallery

The 803 D5 is the most compact 800 Series Diamond model to feature the iconic Turbine Head configuration. Thanks to its smaller proportions, it delivers reference-quality Bowers & Wilkins audio performance across a wider range of living and listening spaces.

As well as our Diamond dome tweeter and Solid Body Tweeter-on-Top, 803 D5 features new innovations, including enhanced Matrix™ with Space Frame Bracing and an Aluminium Top Plate with damping collar, ensuring the most precise and compelling sound possible. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 803 D5 is uncompromising in both performance and design.

- Technical features: Diamond dome tweeter, Solid body Tweeter-on-Top, Continuum™ cone FST midrange, Anti-Resonance plug, Biomimetic Suspension, Turbine Head, Matrix™, Aerofoil™ base cones, Flowport™
- Description: 3-way vented-box system
- Drive units: 1x ø25 mm (1") Diamond dome high-frequency, 1x ø130 mm (5") Continuum cone FST midrange, 2x ø180 mm (7") Aerofoil™ bass
- Frequency range (-6 dB): 16 Hz – 35 kHz
- Frequency response (±3 dB): 19 Hz – 28 kHz
- Sensitivity: 90 dB
- Harmonic distortion: 2nd and 3rd harmonics (90 dB, 1 m on axis): < 1% 80 Hz – 20 kHz; < 0.3% 100 Hz – 8 kHz
- Nominal impedance: 8 Ω (minimum 3 Ω)
- Recommended amplifier power: 50 W – 500 W into 8 Ω on unclipped programme
- Max recommended cable impedance: 0.1 Ω
- Cabinet finishes: Stealth Black, Warm White, Dark Walnut, Light Walnut
- Grille finishes: Black (Stealth Black and Dark Walnut), Grey (Warm White and Light Walnut)
