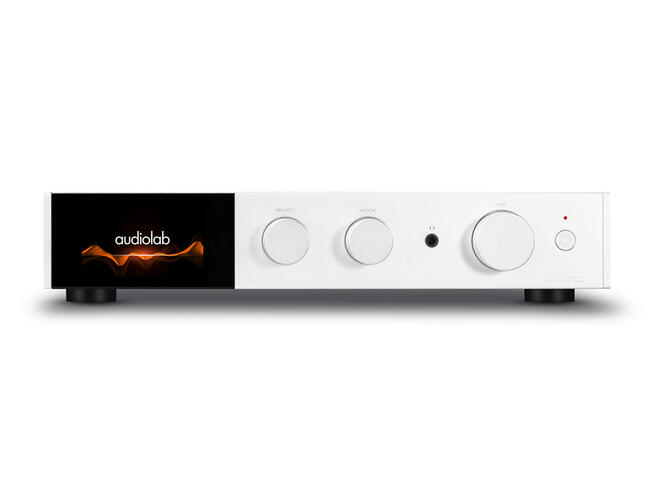

AUDIOLAB

9000A

ALU-SILVER

ALU-SILVER ALU-BLACK

AMPLIFIER

PRICE 2 299CHF / pcs incl.tax (7,7%) and shipment

Picture gallery

- Inputs: 3x Analogue, 1x XLR, 1x Phono (MM), 1x Power Amplifier, 2x SPDIF (Coax), 2x SPDIF (Optical), 1x PC USB (USB B), 1x Bluetooth (aptX/aptX HD/LDAC), 1x 12 V Trigger
- Outputs: 1x PRE Amplifier,1x Stereo Speaker, 1x Headphone, 1x 12 V Trigger
- Sampling Frequency: Optical / Coaxial: 44.1 kHz - 192 kHz;
- PC USB: 44.1 kHz - 768 kHz (PCM) / DSD64, DSD128, DSD256, DSD512
- Gain (max.): +6 dB (Line), +53 dB (Phono MM)
- Input Sensitivity: 1 Vrms (Line, Volume = 0 dB); 2 Vrms (XLR, Volume = 0 dB), 4.4 mV (Phono MM, Volume = 0 dB)
- Input Impedance: 10K (Line); 47K / 100 pF (Phono MM)
- Total Harmonic Distortion (THD): < 0.0004% (1 kHz @ 2 V, Volume = 0 dB)
- Frequency Response: 20 Hz - 20 kHz (±0.1 dB)
- Output Voltage: 2.3 V max. (Volume = 0 dB)
- Output Impedance: 120 Ω
- Signal-to-Noise Ratio: > 110 dB (Line & XLR, A-weighted); > 80 dB (Phono MM, A-weighted)
- D to A Converter: ES9038Pro
- Total Harmonic Distortion (THD): < 0.001% (1 kHz @ 0 dBFS)
- Output Level (0 dBFS, 1 kHz): 2.1 Vrms
- Max. Sampling Frequency: Optical, Coaxial: 192 kHz;
- PC USB: PCM768kHz, DSD512
- Signal-to-Noise Ratio (S/N): > 117 dB (A-weighted)
- Rated Power Output: 2x 100 W (8 Ω, THD < 1%); 2x 160 W (4 Ω, THD < 1%)
- Frequency Response: 20 Hz - 20 kHz (±0.3 dB)
- Total Harmonic Distortion (THD): < 0.002% (1 kHz @ 50 W / 8 Ω)
- Input Sensitivity: 1 Vrms
- Signal-to-Noise Ratio (S/N): > 110 dB (A-weighted)
- Max. Output Current: 15 A

Avaliability

9000A ALU-SILVER

VERY LIMITED

9000A ALU-BLACK

On Request

Size & Weight

NET WEIGHT

9.40 kg

PRODUCT SIZE (WxHxD)

444 x 89 x 342 mm

Colours
