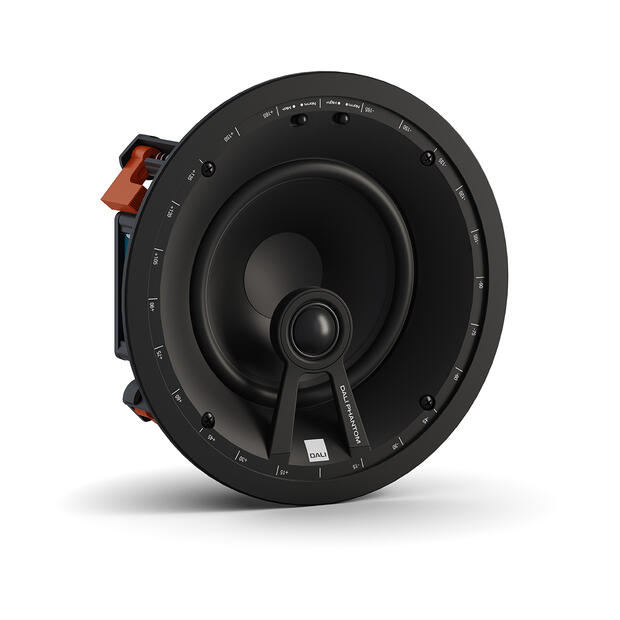

PHANTOM E-60 WR
IN-CEILING / IN-WALL SPEAKER
PRIX
299CHF
/ pcs
incl.tax (7,7%) and shipment
Augmenter
Galerie d`image
DESCRIPTION
- The PHANTOM E-60 WR and E-80 WR are in-ceiling/in-wall loudspeakers for almost any location and any audio system. Engineered weather resistance and IP65 rated ingress protection makes the E-WR series suitable for high humidity and covered outdoor locations such as bathrooms, and patios. And their wide dispersion DALI designed bass/midrange drivers and 25 mm dome tweeters result in performance appropriate for the widest possible variety of audio systems. E-WR series installation, through swing-out dogleg clamps, requires no specialist tools, and the inclusion of both midrange and high frequency level adjustment (High+ / Mid+) provides unbeatable configuration versatility.
- - Frequency range: 52 - 25,000 Hz ±3 dB
- - Sensitivity: 88 dB @ 1 m for 2.83 V
- - Nominal impedance: 8 Ω
- - Maximum SPL: 105 dB
- - Crossover frequency: 3,300 Hz
- - Crossover principle: 2-way
- - Recommended amplifier power: 30 - 120 W
- - High frequency driver: 1x 25 mm soft dome
- - High frequency diaphragm: Soft woven fabric
- - Low / Mid frequency driver: 1x 6½"
- - Low / Mid frequency diaphragm: Polypropylene
- - Connection input: Single wire
- - Enclosure type: Open back
- - Other features: Normal / High+, Normal / Mid+, Galvanized grille
- - Installation location: In-ceiling / In-wall
- - Recommended placement: Ceiling / Front / Centre / Surround
- - IP rating: IP65
- - Outer dimensions incl. grille (H x W x D): Ø 258 x 104 mm
- - Outer dimensions excl. grille (H x W x D): Ø 242 x 100 mm
- - Cut-out dimensions: Ø 225 mm
- - Mounting depth: 96 mm
- - Recommended rear volume (backbox): 5 - 50 litres
- - Optimum rear volume: 15 litres
- - Ceiling/wall thickness (total dog-leg span): 10 - 70 mm
- - Weight incl. grille: 2 kg
- - Shipping weight: 3 kg
- - Finish: White
- - Accessories: Manual, Cut-out template, Front grille, Logo badge
- - Optional accessories: Pre-construction Kit PHANTOM UNIVERSAL 25 backbox
DOCUMENTS
DISPONIBLE DANS LES SALLES D'EXPOSITION
Disponible
PHANTOM E-60 WR
QUANTITÉ LIMITÉE
Taille et poids
POIDS NET
2.00 kg
TAILLE DE PRODUIT
258 x 258 x 104 mm
