PHANTOM IC M-80 A

INSTALLER LE HAUT-PARLEUR

PRIX 799CHF / pcs incl.tax (7,7%) and shipment

NOUVEAU

Galerie d`image

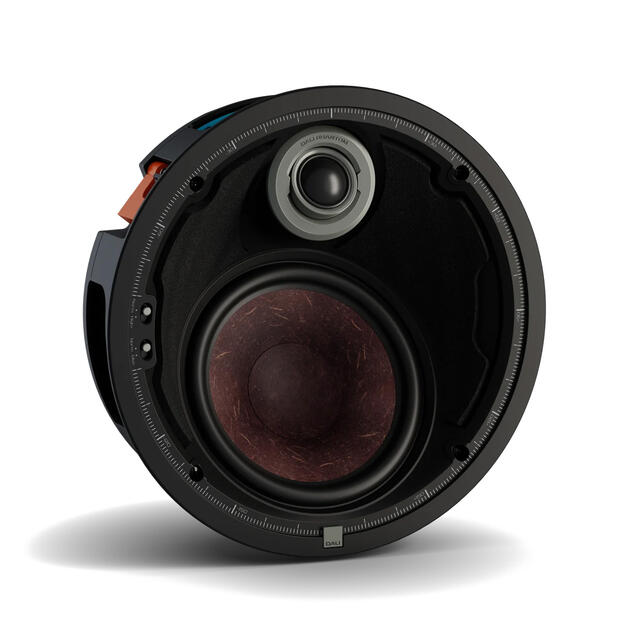

The PHANTOM M-80 A is a high-performance, directional-dispersion, in-ceiling Hi-Fi speaker. Featuring an angled, DALI-designed, SMC-equipped 7 inch bass/midrange driver and innovative decoupled 28 mm soft dome tweeter, the M-80 A brings discreet, extraordinary sound to high-end home theatres, distributed sound installations and ceiling-mounted music systems.

With a powerful 7 inch bass/midrange driver angled at 25° and an adjustable tweeter, the PHANTOM M-80 A (angled) lets you direct the sound with precision for optimum dispersion and the best-possible sound quality at the listening position. The M-80 A also incorporates our compass-style direction indicators that make fine adjustments quick and convenient.

With its angled drivers, the discreet M-80 A in-ceiling speaker recreates the immersion of a traditional floor, wall or shelf-mount home theatre setup. Delivering exceptional LCR (left, centre, right), surround and height channel audio, the M-80 A is the perfect solution when floorspace is limited, side and rear walls are not suitable for mounting speakers or when a more discreet setup is preferred.

Designed to complement our high-performance M-series in-wall speakers, the M-80 A's 7 inch bass/midrange driver with lightweight paper and wood fibre cone, low-loss rubber surround and DALI's patented SMC-based magnet system offers rich, full low frequencies and a natural, uncoloured midrange. Combine that with the new oversized 28 mm soft dome tweeter with an impressively extended and detailed upper-frequency response and you have a speaker that offers class-leading sound quality in the angled in-ceiling speaker category.

The simple dogleg clamp system and magnetic grille make installing the M-80 A quick and convenient with no need for special tools. Simply connect the speaker cables using the spring terminals and insert the speaker into the aperture – only 134 mm mounting depth required. Fine-tune using the compass-style markings and turn the four clamp screws to secure the speaker in place. Then fit the magnetic grille over the speaker and you're done.

The M-80 A bass/midrange driver features our unique paper and wood fibre cone material. While adding stiffness to control unwanted vibrations, the wood fibre material also offers non-uniform break-up characteristics to lower colouration and distortion for a cleaner and more uncoloured sound reproduction. The lightweight cone also increases driver sensitivity and makes it easier for the amplifier to control at higher frequencies.

The newly developed, oversized 28 mm tweeter generates higher sound pressures with less excursion for exceptional driver control. The oversized design also extends low-frequency response, providing a more seamless handover from the bass/midrange driver that creates a naturally balanced, effortless and coherent midrange performance.

- Frequency Range (±3 dB): 48 - 27,000 Hz
- Sensitivity (2.83 V / 1 m): 86.5 dB
- Nominal Impedance: 6 Ω
- Maximum SPL: 106 dB
- Crossover Frequency: 2,500 Hz
- Crossover Principle: 2-way
- Recommended Amplifier Power: 50 - 250 W
- High Frequency Driver: 1x 28 mm soft dome
- High Frequency Diaphragm: Soft woven fabric
- Low/Mid Frequency Driver: 1x 7"
- Low/Mid Frequency Diaphragm: Wood fibre cone
- Enclosure Type: Open back
- Other Features: Normal/High+, Normal/Mid+
- Installation Location: In-ceiling
- Recommended Placement In-ceiling LCR and surround
- Outer Dimensions Including Grille (Ø x D): Ø 289 x 138.5 mm
- Outer Dimensions Excluding Grille (Ø x D): Ø 278 x 138 mm
- Cut-out Dimensions: Ø 261 mm
- Mounting Depth 134 mm
- Recommended Rear Volume (Backbox): 15 - 100 l
- Optimum Rear Volume: 25 l (PHANTOM UNIVERSAL 25 backbox)
- Ceiling/Wall Thickness (total dog-leg span): 6 - 52 mm
- Accessories: Manual, Cut-out Template, Front grille
- Optional accessories: CLASSIC, SQUARE and DESIGN grilles, PHANTOM UNIVERSAL 25 backbox, Pre-construction Kit

Disponible

PHANTOM IC M-80 A

QUANTITÉ LIMITÉE

Taille et poids

POIDS NET

2.80 kg

TAILLE DE PRODUIT

289 x 289 x 139 mm
