STEREO

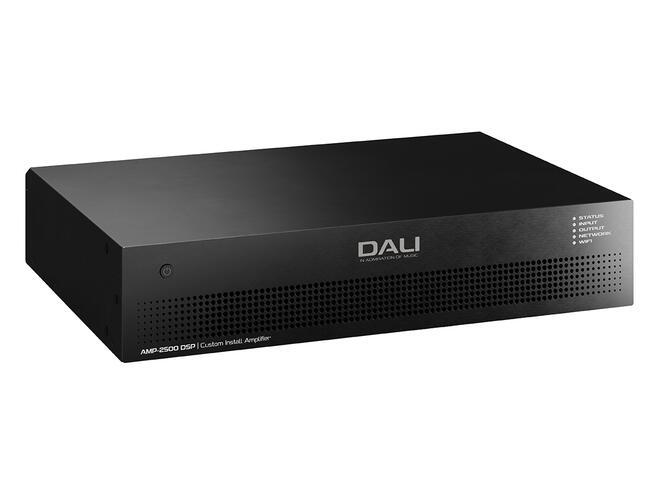

PHANTOM CI AMP-2500 DSP

INTEGRATED AMPLIFIER

PRICE 2 199CHF / pcs incl.tax (7,7%) and shipment

Picture gallery

Featuring 2x 500 watts Class-D amplification, the PHANTOM CI AMP-2500 DSP has effortless power, extremely high efficiency, and ultra-low distortion. This rack-mountable powerhouse of an amplifier can also be bridged into a 1,000 Watt mono amp.

With such headroom, the CI AMP-2500 DSP is the perfect power source for the PHANTOM S and M series and up to four PHANTOM IW SUB S-100 in-wall subwoofers.

It is rack mountable for placement in a rack-cabinet, and features an adaptive fan control, which keeps fan noise to a minimum. The landmark amp also features a fully featured DSP (Digital Signal Processing) and configurator web interface. With built-in DSP it is tailored via model specific pre-sets to optimise DALI CI models, for the best possible sound experience in your audio installation.

The system set-up can be configured to be wired or wireless and allows access to the DALI CONFIGURATOR app for easy system and audio configuration. You can also manage sound zones, inputs/outputs, firmware updates, import of speaker presets and access to professional EQ settings. Configuration takes only a few minutes and can even be set up from a smartphone.

- Frequency Range (±0.5 dB, 8 Ω load, 3 dB below rated power): 12 - 20 Hz
- Connection Input: 4x Analog unbalanced (RCA), 4x Analog balanced (Euroblock connector), 1x S/PDIF (RCA)
- Output Channels: 2x Lo-Z speaker (4 - 16 Ω), 1x Hi-Z speaker (70 V / 100 V), 1x S/PDIF digital out (RCA)
- Output Power [8 Ω]: 2x 250 W (SE), 1x 1000 W (BTL)
- Signal To Noise - ratio (20 - 20k Hz, 8 Ω load): > 108 (A-weighted) db
- Standby Consumption: < 0.5 W
- THD+N (Typical) [20 - 20k HZ, 8 Ω load, 3 dB Below Rated Power]: < 0.05 %

Avaliability

PHANTOM CI AMP-2500 DSP

VERY LIMITED

Size & Weight

NET WEIGHT

5.90 kg

PRODUCT SIZE (WxHxD)

440 x 88 x 332 mm
