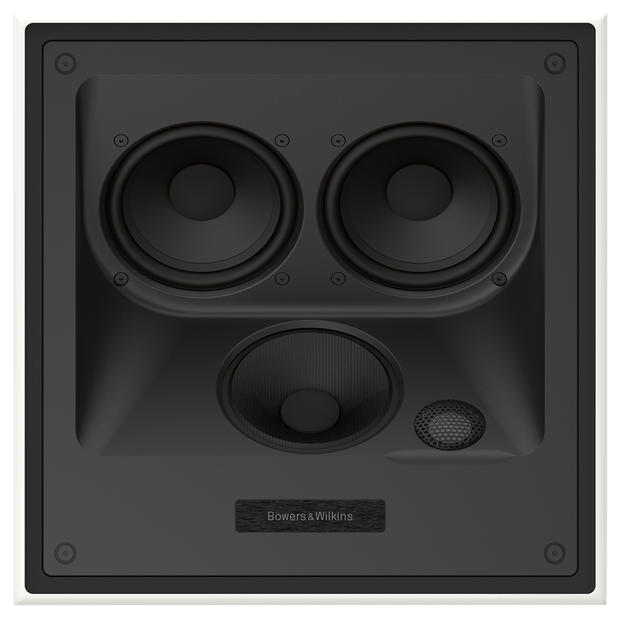

CCM7.3 S2
IN-CEILING SPEAKER
PRICE
1 999CHF
/ pcs
incl.tax (7,7%) and shipment
Zoom
Picture gallery
DESCRIPTION
- The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25 mm (1") Carbon Dome tweeter, a 100 mm (4") FSTTM Continuum cone midrange and 2x 130 mm (5") Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.
- - Technical features: Carbon Dome tweeter, Continuum cone FST midrange, Aerofoil profile bass cones
- - Description: 3-way in-ceiling system
- - Drive units: 1x ø 25 mm (1") Carbon Dome high-frequency, 1x ø 100 mm (4") Continuum cone FST midrange, 2x ø 130 mm (5") Aerofoil profile bass
- - Frequency range (-6 dB): -6 dB at 52 Hz and 33 kHz
- - Frequency Response -3 dB: 55 Hz - 28 kHz ±3 dB
- - Sensitivity: 90 dB spl (2.83 Vrms, 1 m)
- - Harmonic distortion: 2nd and 3rd harmonics (90 dB, 1 m), <1% 90 Hz - 33 kHz, <0.5% 120 Hz - 33 kHz
- - Nominal impedance: 8 Ω (minimum 3.1 Ω)
- - Recommended amplifier power 25 W - 200 W into 8 Ω on unclipped programme
DOCUMENTS
CHECK AVAILABILITY
Avaliability
CCM7.3 S2
On Request
Size & Weight
NET WEIGHT
9.00 kg
PRODUCT SIZE (WxHxD)
355 x 355 x 195 mm
