SPEAKERS

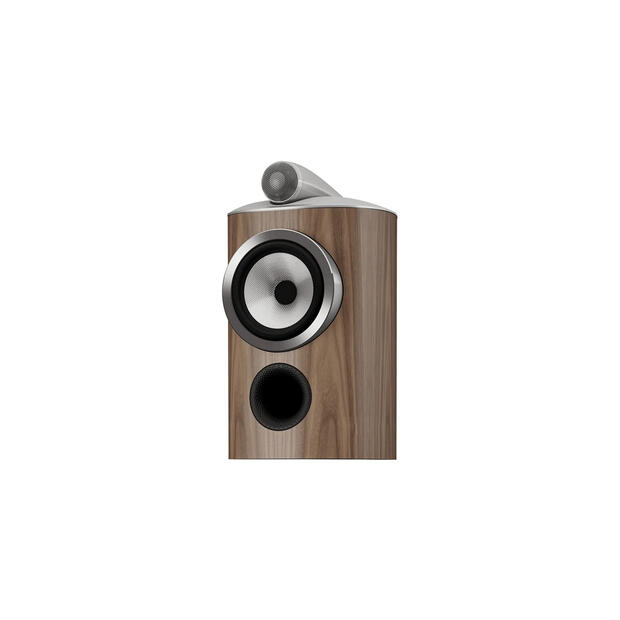

805 D5

LIGHT WALNUT

LIGHT WALNUT STEALTH BLACK WARM WHITE DARK WALNUT

COMPACT SPEAKER

PRICE 5 249CHF / pcs incl.tax (7,7%) and shipment, min 2 pcs

Picture gallery

The 805 D5 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range. While it’s best suited for smaller listening spaces, its large-scale performance greatly exceeds its modest stature.

Equipped with our Diamond dome tweeter, Solid Body Tweeter-on-Top and Continuum mid-bass cone housed in a reverse wrap cabinet, 805 D5 sounds and performs best when securely atop its bespoke speaker stands. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 805 D5 is proof positive that small can still be beautiful.

- Technical features: Diamond dome tweeter, Solid body Tweeter-on-Top, Continuum™ cone FST midrange, Anti-Resonance plug, Matrix™, Flowport™
- Description: 2-way vented-box system
- Drive units: 1x ø25 mm (1") Diamond dome high-frequency, 1x ø165 mm (6.5") Continuum cone bass/midrange
- Frequency range (-6 dB): 34 Hz – 35 kHz
- Frequency response (±3 dB): 42 Hz – 28 kHz
- Sensitivity: 88 dB
- Harmonic distortion: 2nd and 3rd harmonics (90 dB, 1 m on axis): < 1% 90 Hz – 20 kHz; < 0.3% 120 Hz – 8 kHz
- Nominal impedance: 8 Ω (minimum 4.6 Ω)
- Recommended amplifier power: 50 W – 120 W into 8 Ω on unclipped programme
- Max recommended cable impedance: 0.1 Ω
- Cabinet finishes: Stealth Black, Warm White, Dark Walnut, Light Walnut
- Grille finishes: Black (Stealth Black and Dark Walnut), Grey (Warm White and Light Walnut)
- Accessories (optional): FS-805 Stand
